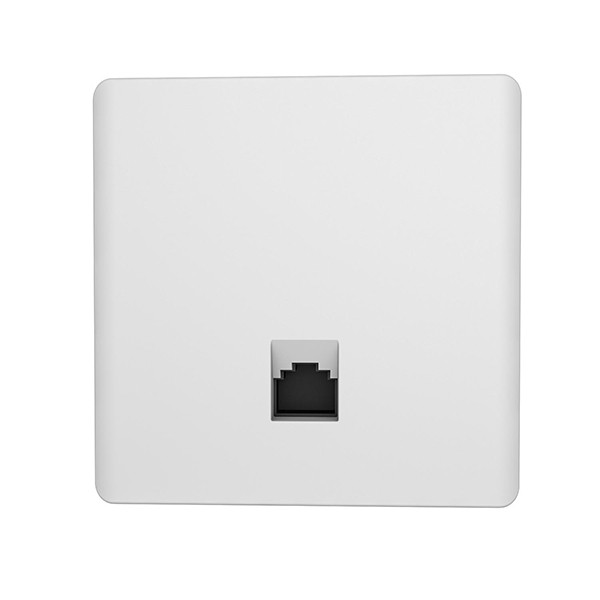

MS1201K wall panel AP can work in two frequency bands 2.4GHz/5GHz at the same time, support 900Mbps 11AC (5GHz) and 300Mbps 11N (2.4GHz) concurrency, the highest wireless rate can reach 1200Mbps, can access more wireless clients, solve restaurant problems , conference hall, KTV and other crowd-intensive environments; the dual-band in-wall panel AP can provide 5GHz wireless services, providing a cleaner wireless environment and more stable wireless access.
| Hardware Configuration | ||||
|---|---|---|---|---|
| Model | MS1201K | |||
| Main Chip | MT7621D+MT7613E+MT7603 | |||
| Clock frequency | CPU：880MHz | |||
| Memory | 128MB DDR2 RAM | |||
| Flash | 16MB | |||
| Device interface | 1 10/100 /1000Mbps Adaptive full gigabit wired WAN port (POE port) | |||
| 1 10/100/1000Mbps Mbps auto-adaptive full Gigabit wired LAN port | ||||
| 1 reset button, long press to restore default configuration | ||||
| Antenna | Omnidirectional high gain 3dBi built-in antenna | |||
| Power Adapter | POE：48V(IEEE802.3at) 0.5A | |||
| Host size | 86*86*35mm | |||
| RF characteristics | ||||
| Transmission rate | 1200Mbps | |||
| Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK | |||
| Frequency Range | ISM band: 2.412 ~ 2.472 GHz,5.15 ~ 5.85 GHz | |||
| Channel distribution | 2G:1、2、3、4、5、6、7、8、9、10、11、12、135G:36、40、44、48、52、56、60、64、149、153、157、161 | |||
| Output Power | 11ac MCS0 14dBm | |||
| Receive sensitivity | 802.11n: -68dbm@MCS7, -86dbm@MCS0802.11g: -72dbm@54Mbps, -90dbm@6Mbps802.11b: -72dbm@11Mbps, -88dbm@1Mbps802.11ac：-85dbm@11Mbps, -94dbm@1Mbps | |||
| Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK | |||
| EVM | 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB | |||
| Frequency offset | ±20ppm | |||
● 1200Mbps high speed and NAT high conversion rate
MS1201K adopts 802.11ac, which can provide up to 1200Mbps wireless access speed, which is more than 10 times that of 802.11/b/g/n products in the same environment, and the conversion rate of NAT is >93%. Quick, surf the web as you like.
● Transparent and energy efficient
The product supports IEEE802.3az, which enables a transceiver that has no frame to send to enter a low-power mode. When a new frame arrives, the transceiver will return to the active mode within a few microseconds, thus enabling the protocol The upper level is almost transparent for energy saving. It can automatically adjust energy consumption according to the actual flow of the port, and can quickly switch between full-speed operation and low-power idle mode, saving users 30% of power consumption and greatly saving operating costs.
● Beamforming technology
Through the wave velocity shaping technology, when the interference direction is unknown, the signal weight value of each array element in the array can be automatically adjusted, so that the zero point of the antenna pattern is aligned with the interference direction to suppress the interference, enhance the detection ability of the system's useful signals, optimize the Antenna pattern, and can effectively track useful signals, suppress and eliminate interference and noise, and successfully suppress interference even in the case of multiple interferences and signals of the same frequency distributed in a short distance.
● Linear power manual adjustment
The AP transmit power of the in-wall panel is linearly adjustable, and the AP transmit power can be adjusted reasonably according to the actual environment. In the bar/KTV leisure center lobby and other environments with high traffic flow and high AP density, AP transmit power can be reduced to reduce mutual interference between APs and improve wireless quality; in industrial parks and other environments with low AP density and complex building layout, It can increase the AP transmit power and improve the coverage effect.
