● Dual-band wireless concurrent rate of 1774Mbps;
● 1*10/100/1000Mbps WAN port, 2*10/100/1000Mbps LAN port;
● 4*5dbi dual-band omnidirectional antenna;
● 64MB memory + 16MB Flash design;
● MU-MIMO technology, can communicate with multiple devices at the same time.
| Hardware Specifications | |
|---|---|
| Wired Standard | IEEE802.3、IEEE802.3u |
| Main Chip | RTL8197FH |
| WiFi chip | 5G: RTL8812FH |
| Flash | 16M |
| Memory | 64M |

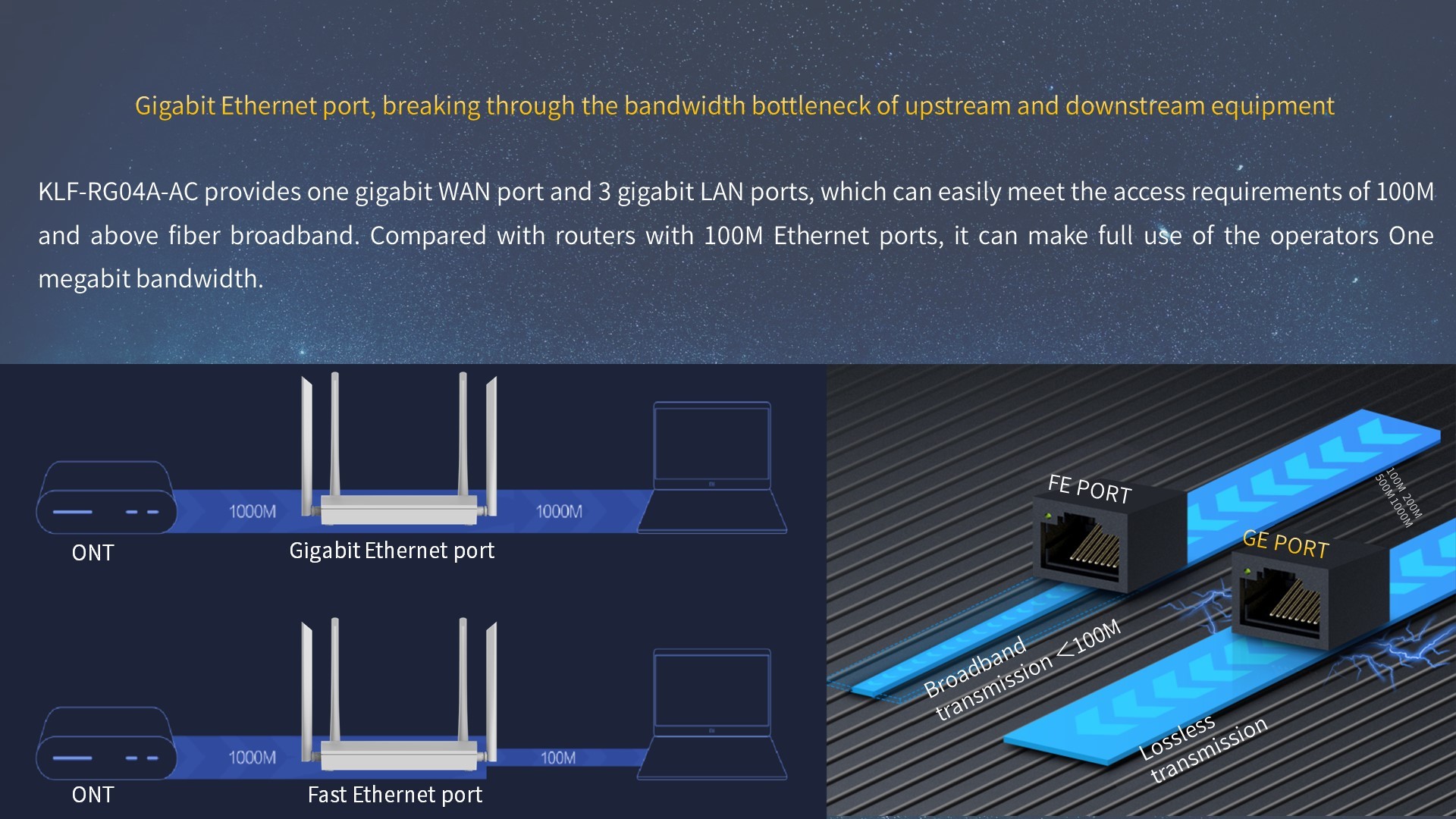

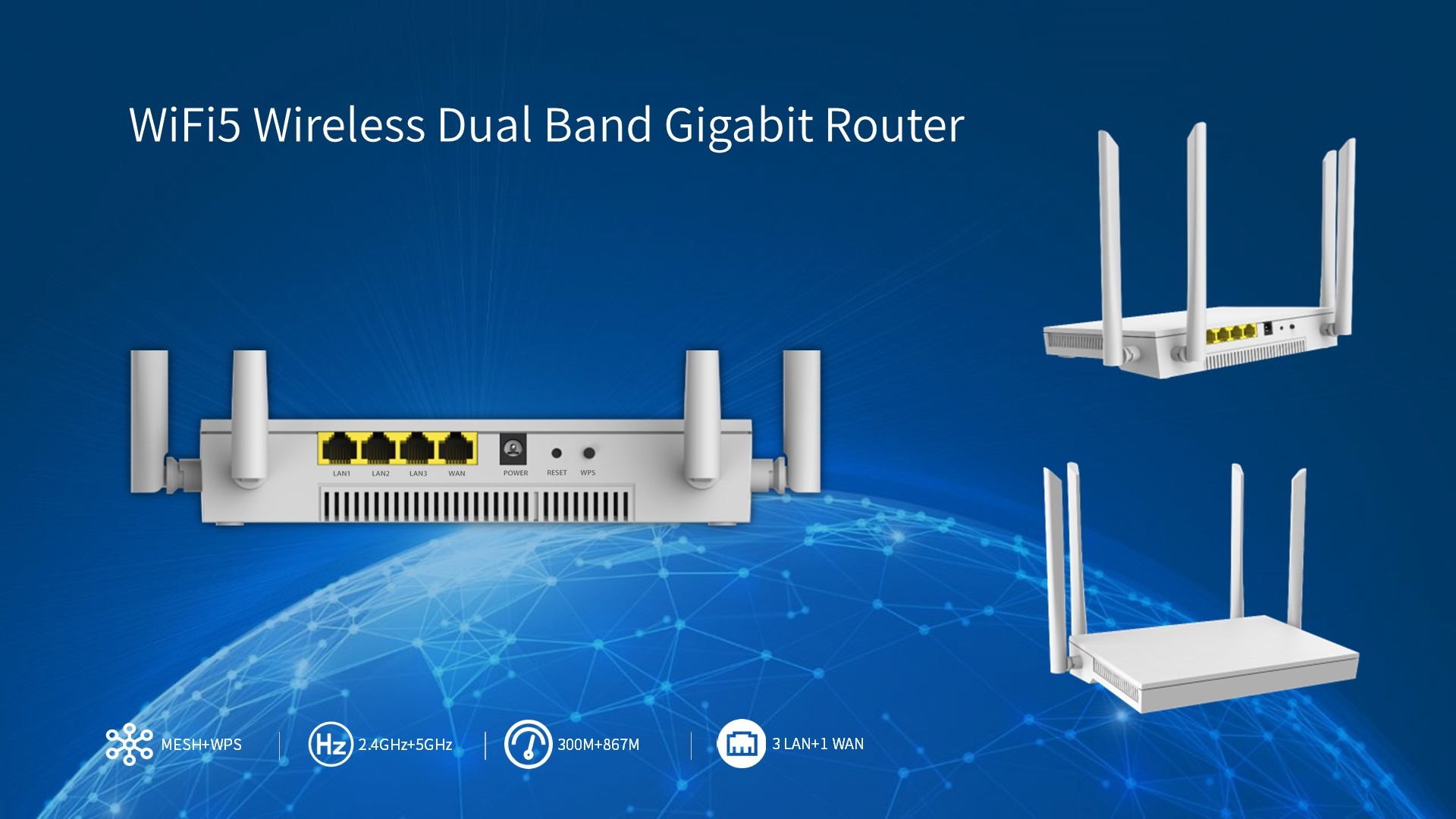

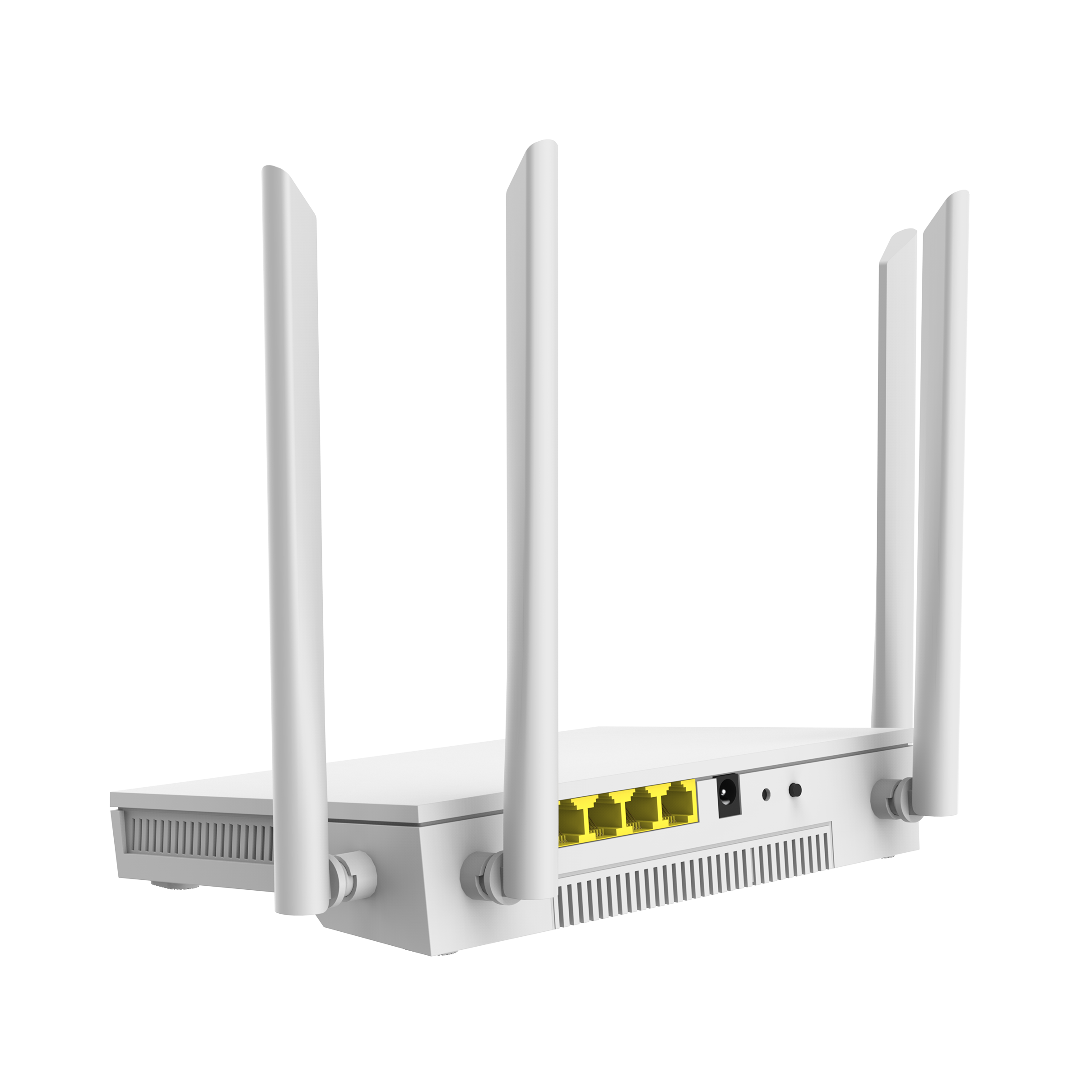

| Port | 1*10/100/1000Mbps WAN Port， 3*10/100/1000Mbps LAN Port |
| Antenna | 4*5dBi External antenna |
| Button | 1*Reset Button， 1*WPS/MESH Button |
| Power Supply | Enter： 200-240V—50/60Hz；Output： DC 12V==1A |
| LED indicator | 1*SYS |
| Dimensions (without antenna) | 183*116*36mm |
| Weight | GW：476g；NW：376g |
| Software function | |
| Connection Type | PPPoE, dynamic IP, static IP; support automatic detection of access mode |
| Operating mode | Wireless Router Mode; Repeater Mode; WISP Mode |

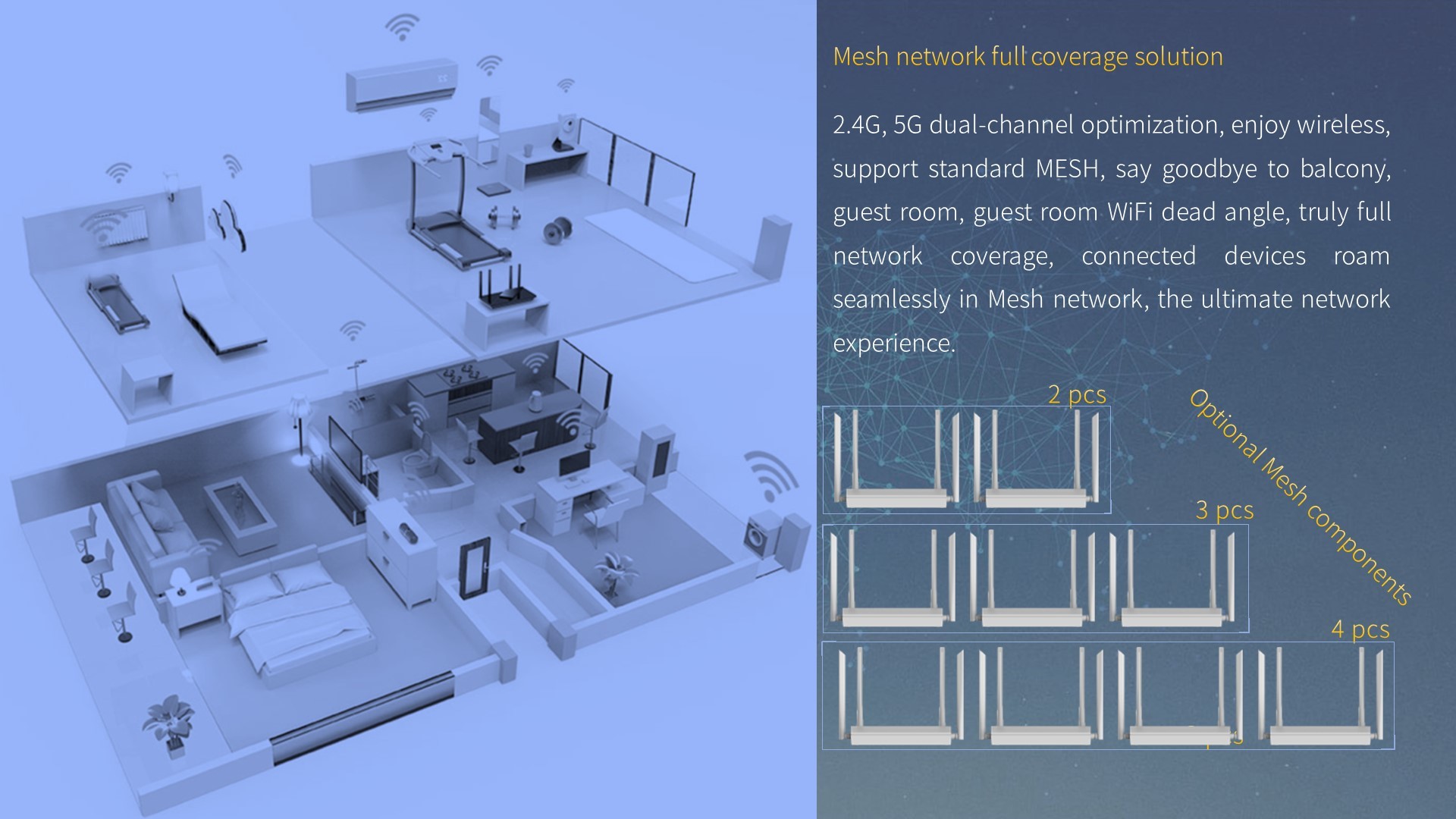

| Mesh network | Fast networking by keys; wireless configuration delivery |
| DHCP | DHCP server; DHCP client list; DHCP reservation |
| VPN | PPTP client; L2TP client |

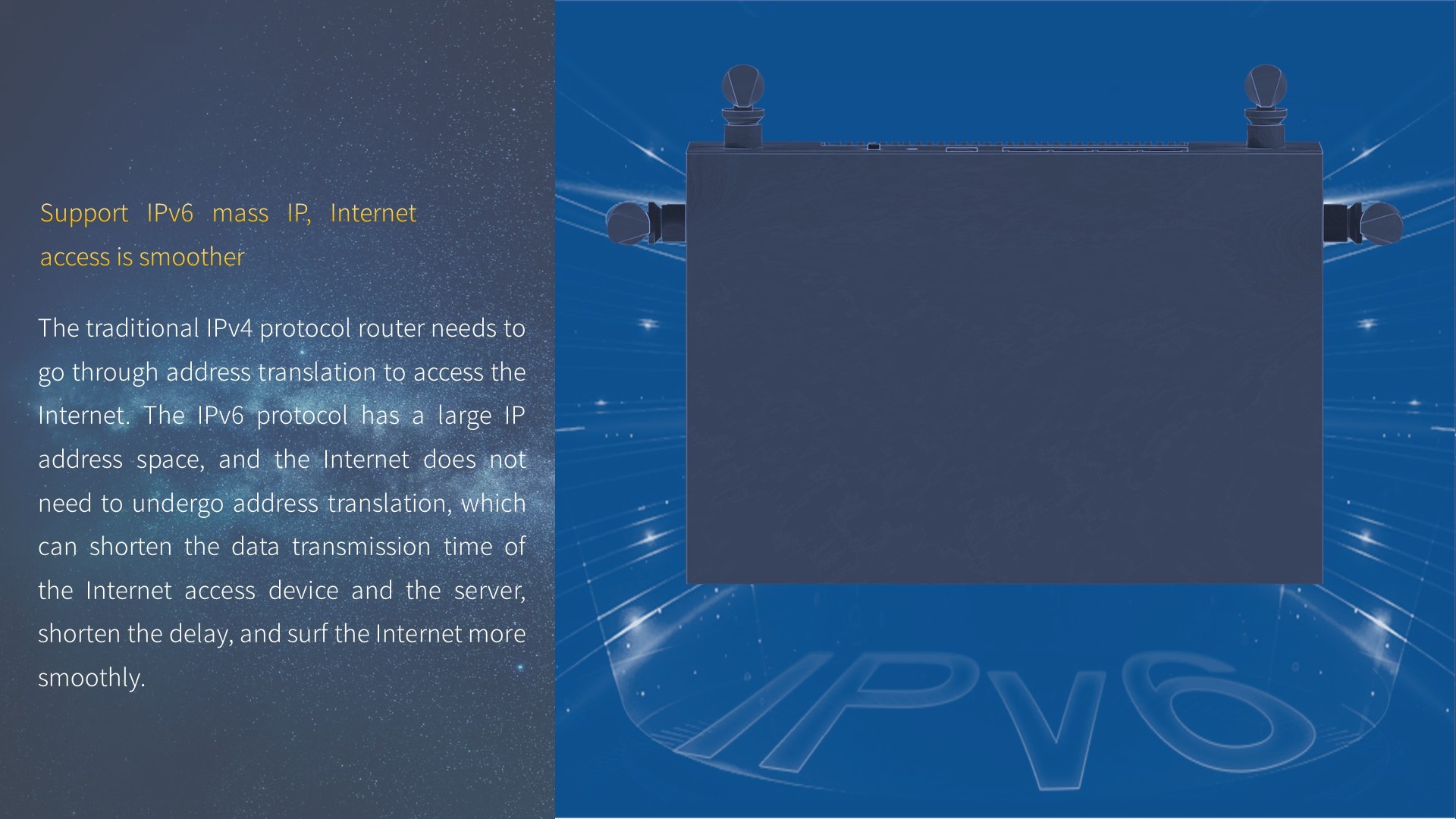

| IP protocol | IPv4 ; IPv6 |
| Other functions | Dual frequency integration; guest network, MAC address cloning, syslog; configuration backup and restore, firewall |
| Wireless standard | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a/n/ac |
| Data rate | 5GHz: 867Mbps; 2.4GHz: 300Mbps |
| Frequency | 2.4GHz&5GHz |
| Basic skills | SSID Broadcast: Enable/Disable; Multiple Input Multiple Output |
| Wireless network security | WPA-PSK、WPA2-PSK、WPA/WPA2-PSK；Wireless Security: Enable/Disable; WPS (WIFI Protected Setup) fast encryption |
| Other | |
| Temperature | Operating temperature：0 ℃ ～45 ℃ ；Storage temperature：-40 ℃ ～70 ℃ 。 |
| Humidity | Working humidity：10% ~ 90% RH no condensation；Storage humidity：5% ~ 90%RH no condensation。 |
| Certificate | CCC、SRRC、CE |
| Package Contents | Wireless Router*1; Power Adapter*1; Installation Guide*1; Ethernet Cable*1 |
