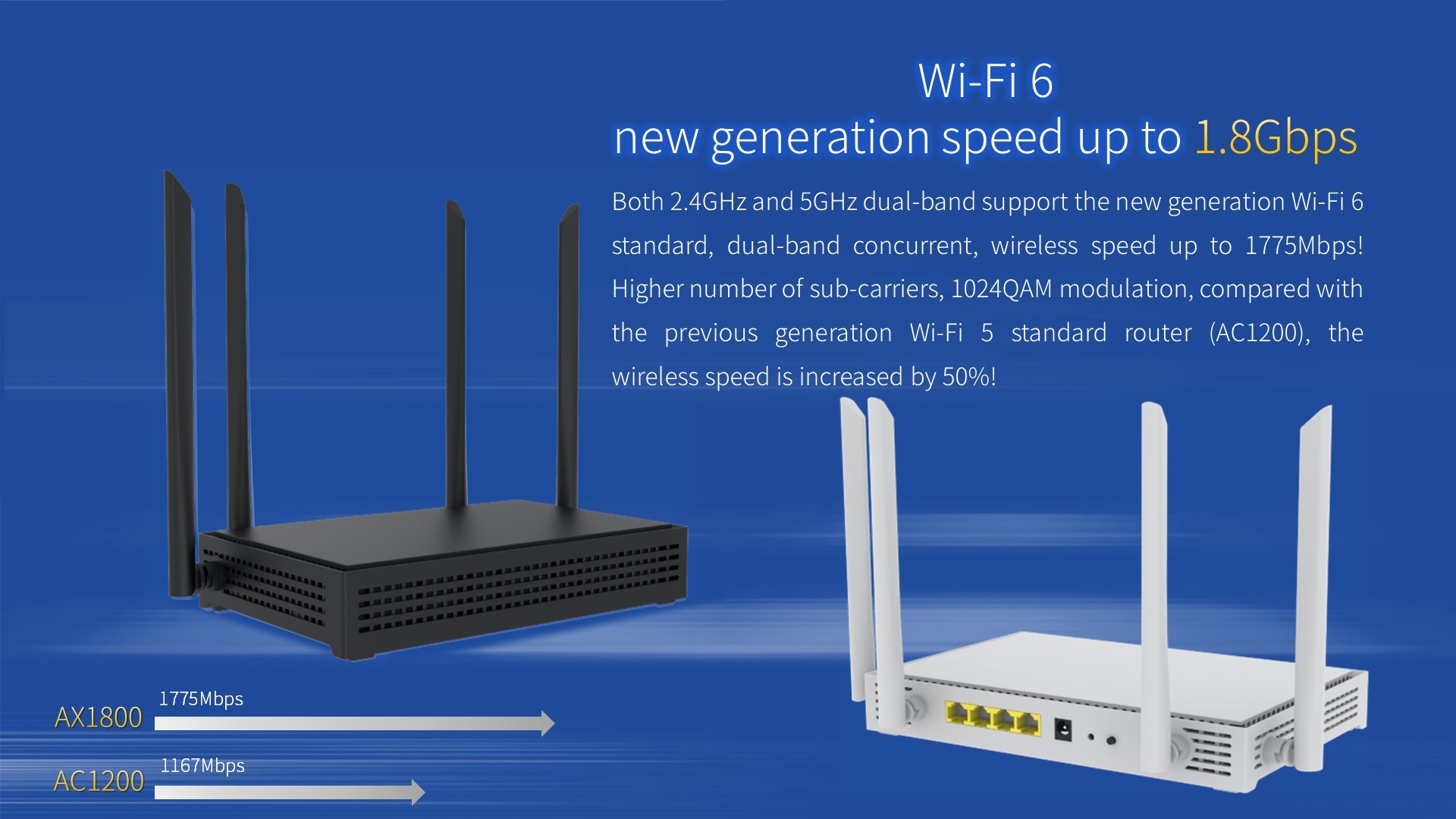

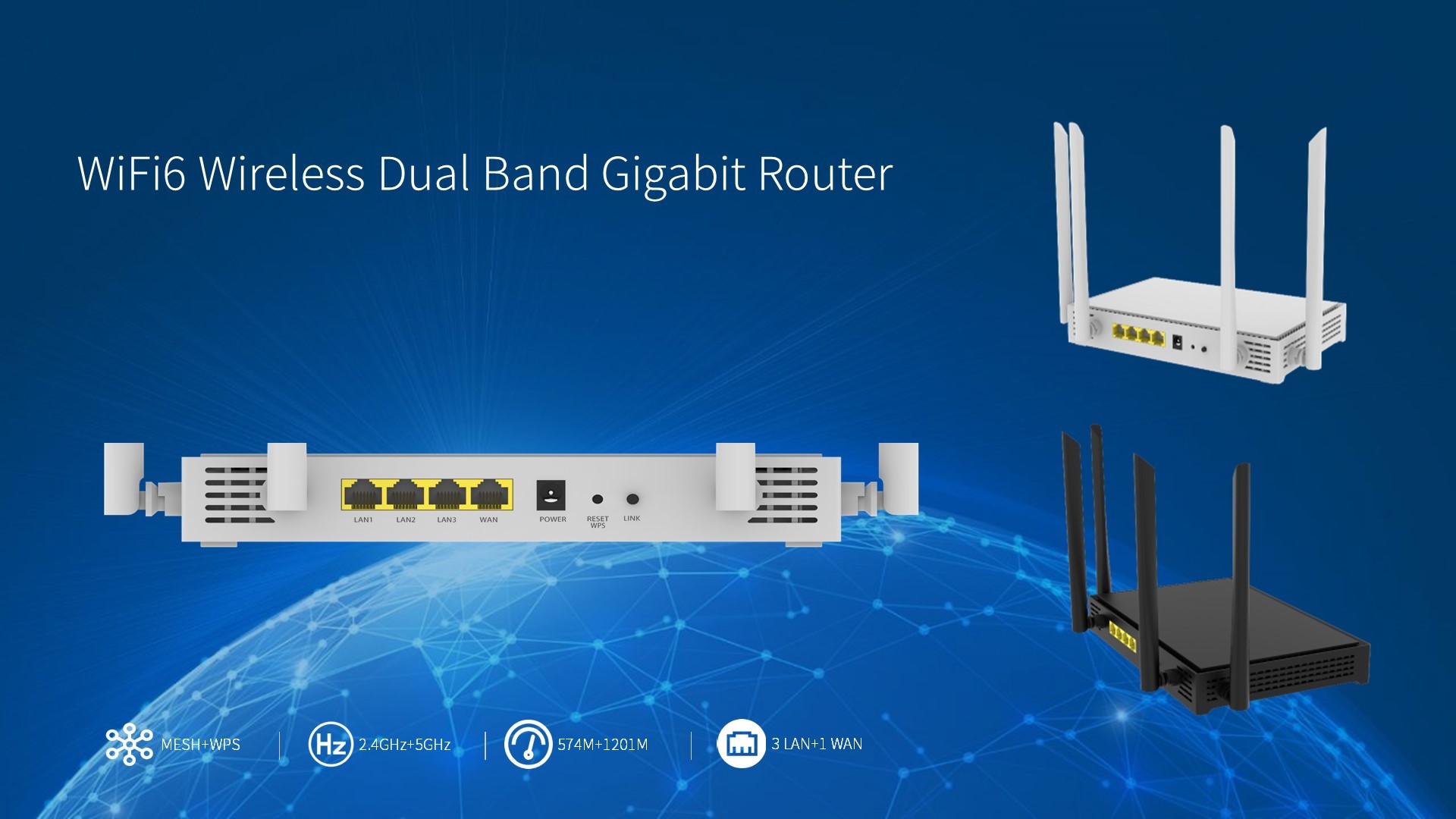

● Dual-band wireless concurrent rate of 1774Mbps;

● 1*100/1000Mbps WAN port, 3*100/1000Mbps LAN port;

● 256MB memory + 128MB Flash large storage design;

● Compared with Wi-Fi 5, the average delay of 40ms is reduced to less than 10ms;

● Reduce signal search time and reduce power consumption by 30%;

● Compatible with all terminal devices on the market that support WIFI6;

Hardware Specifications
Wired standardIEEE802.3、IEEE802.3u
Main chipMT7621A
WiFi chip5G: MT7905DAN； 2.4G: MT7975DN
Flash128M
Memory256M
Port1*10/100/1000   Mbps WAN Port， 3*10/100/1000   Mbps LAN Port

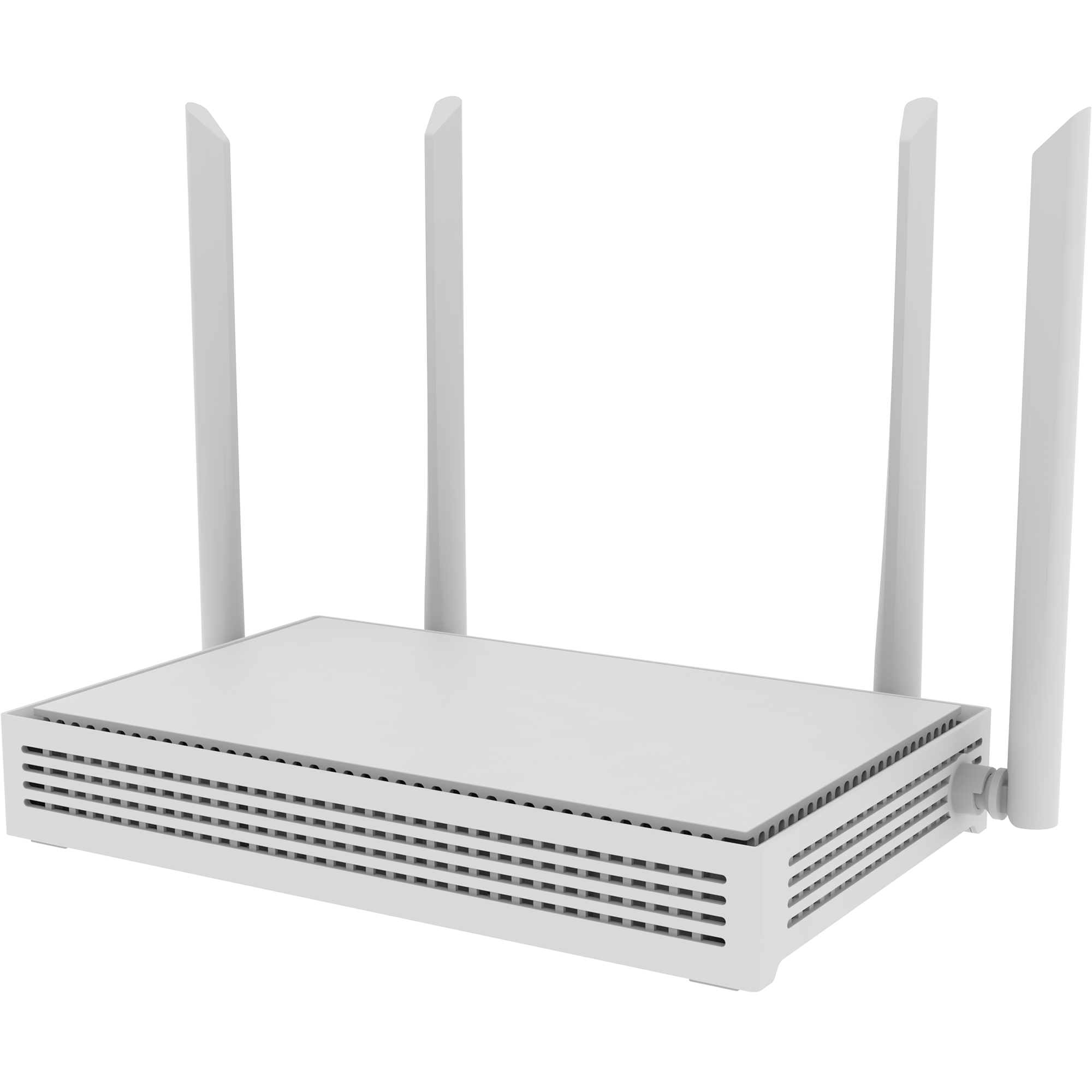

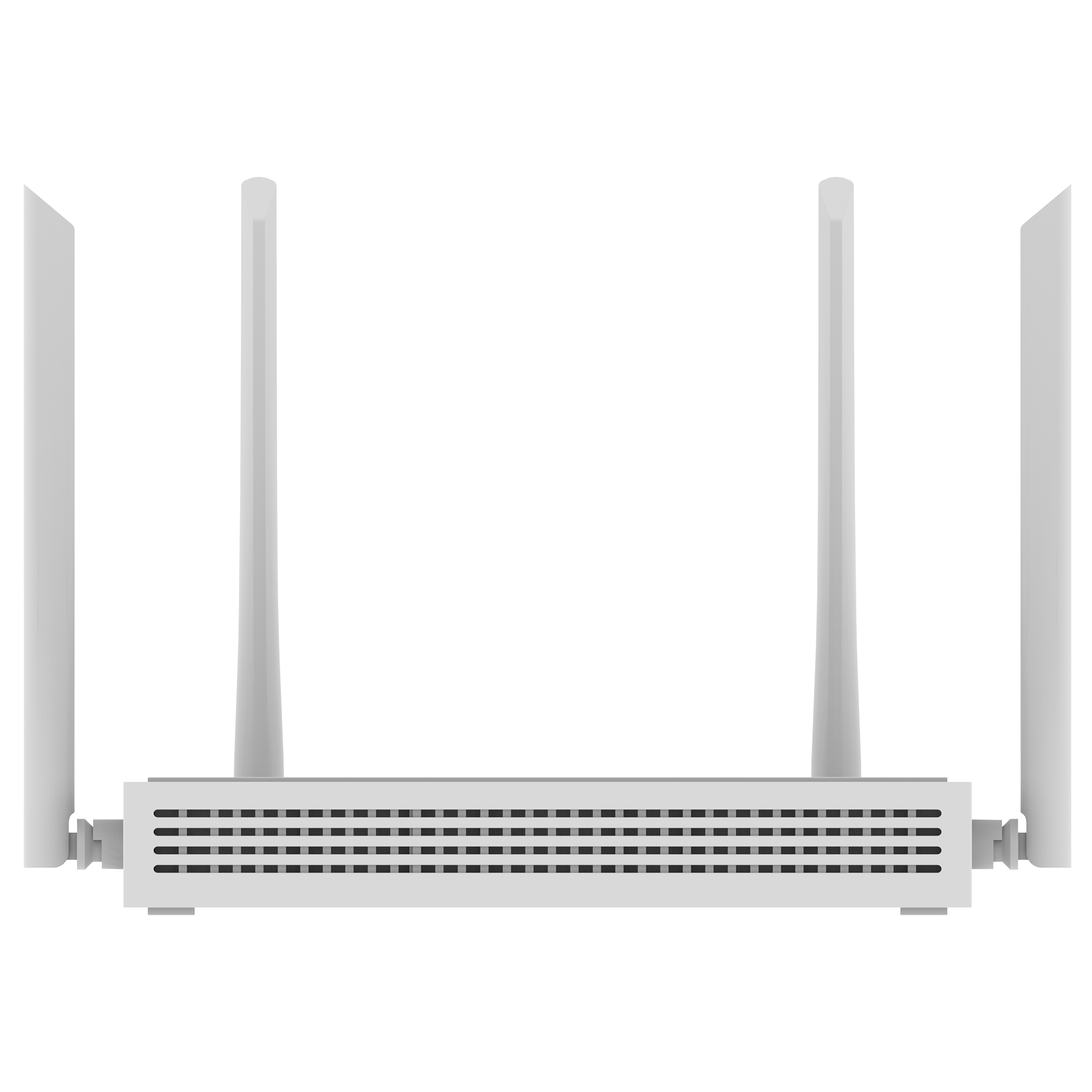

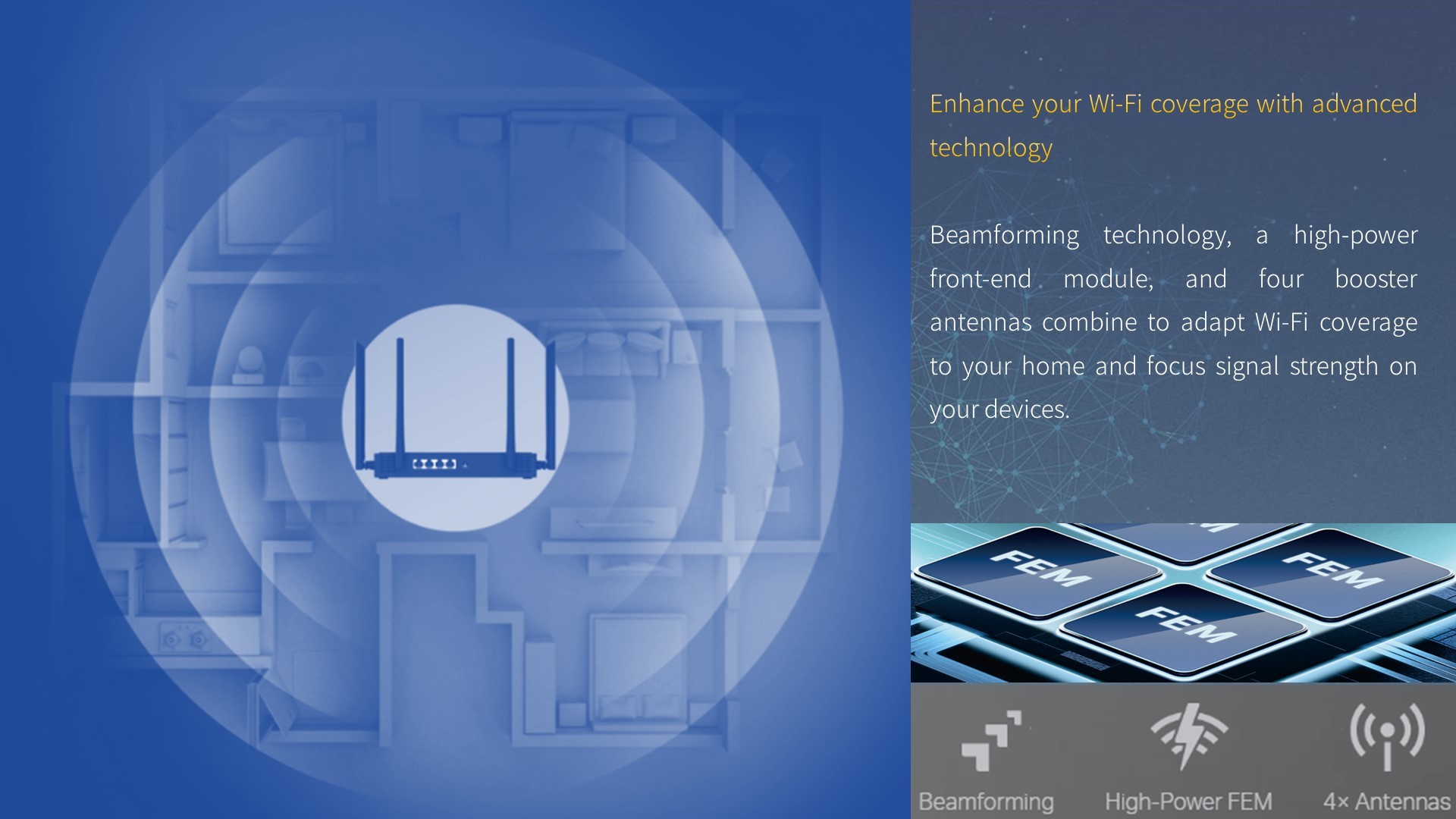

Antenna4*5dBi external antenna
Button1*Reset / WPS button， 1*MESH button
Power supplyEnter： 200-240V—50/60Hz；Output： DC 12V==1A
LED indicator1*SYS
Dimensions (without antenna)32*135*215mm
WeightGross weight： 760g ；Net weight： 382g
Software function
Connection TypePPPoE, dynamic IP, static IP; support automatic detection of access mode
Operating modeWireless Router Mode; Repeater Mode; WISP Mode

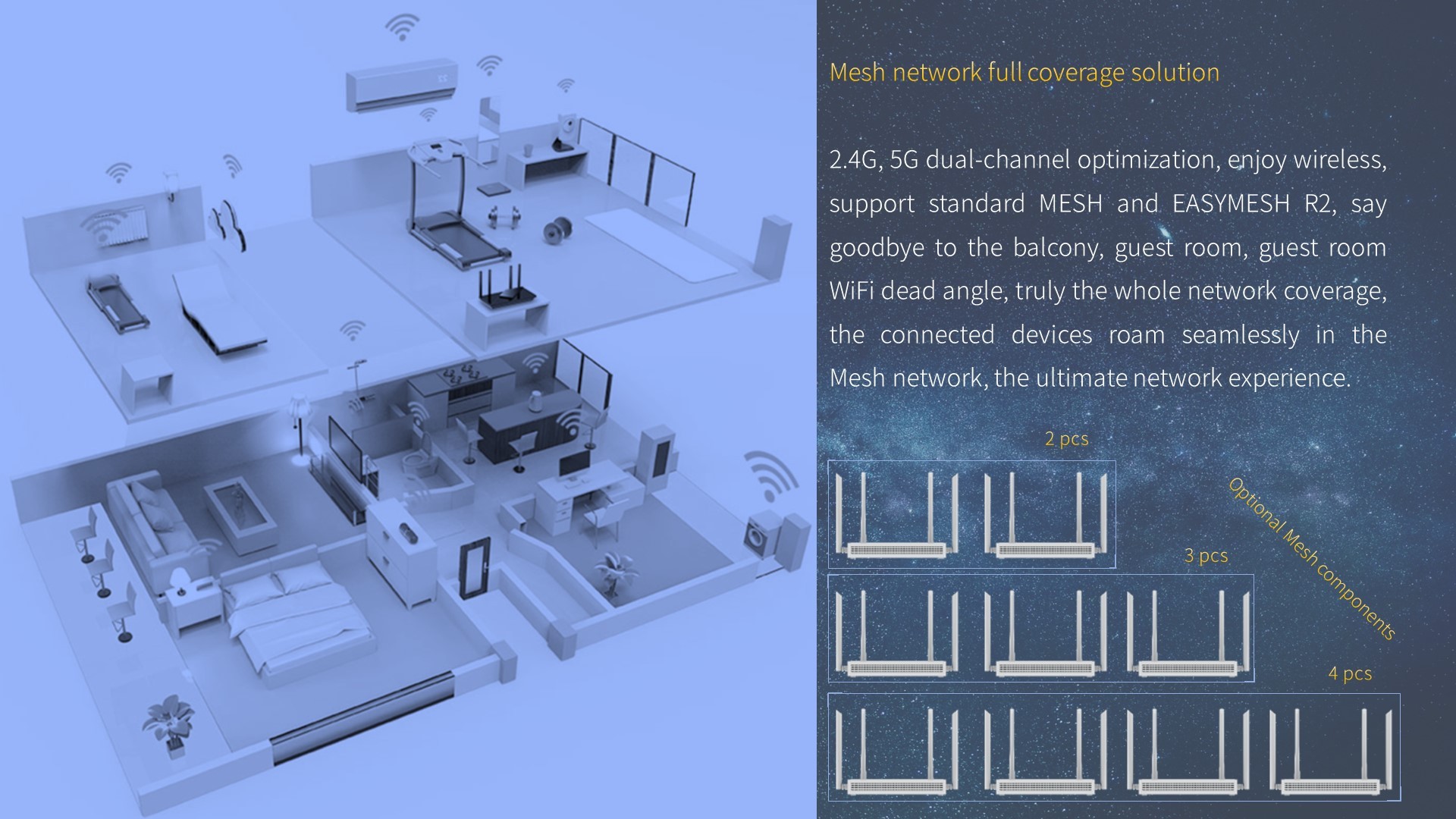

Mesh networkFast networking by keys; wireless configuration delivery
DHCPDHCP server; DHCP client list; DHCP reservation
VPNPPTP client; L2TP client
IP协议IPv4 ; IPv6
Other functionsDual frequency integration; guest network, MAC address cloning, syslog; configuration backup and restore, firewall
Wireless standardIEEE 802.11ax/ac/a/n 5GHz , IEEE   802.11ax/b/g/n 2.4GHz
Data rate5GHz：1201Mbps ；   2.4GHz：574Mbps
Frequency2.4GHz&5GHz

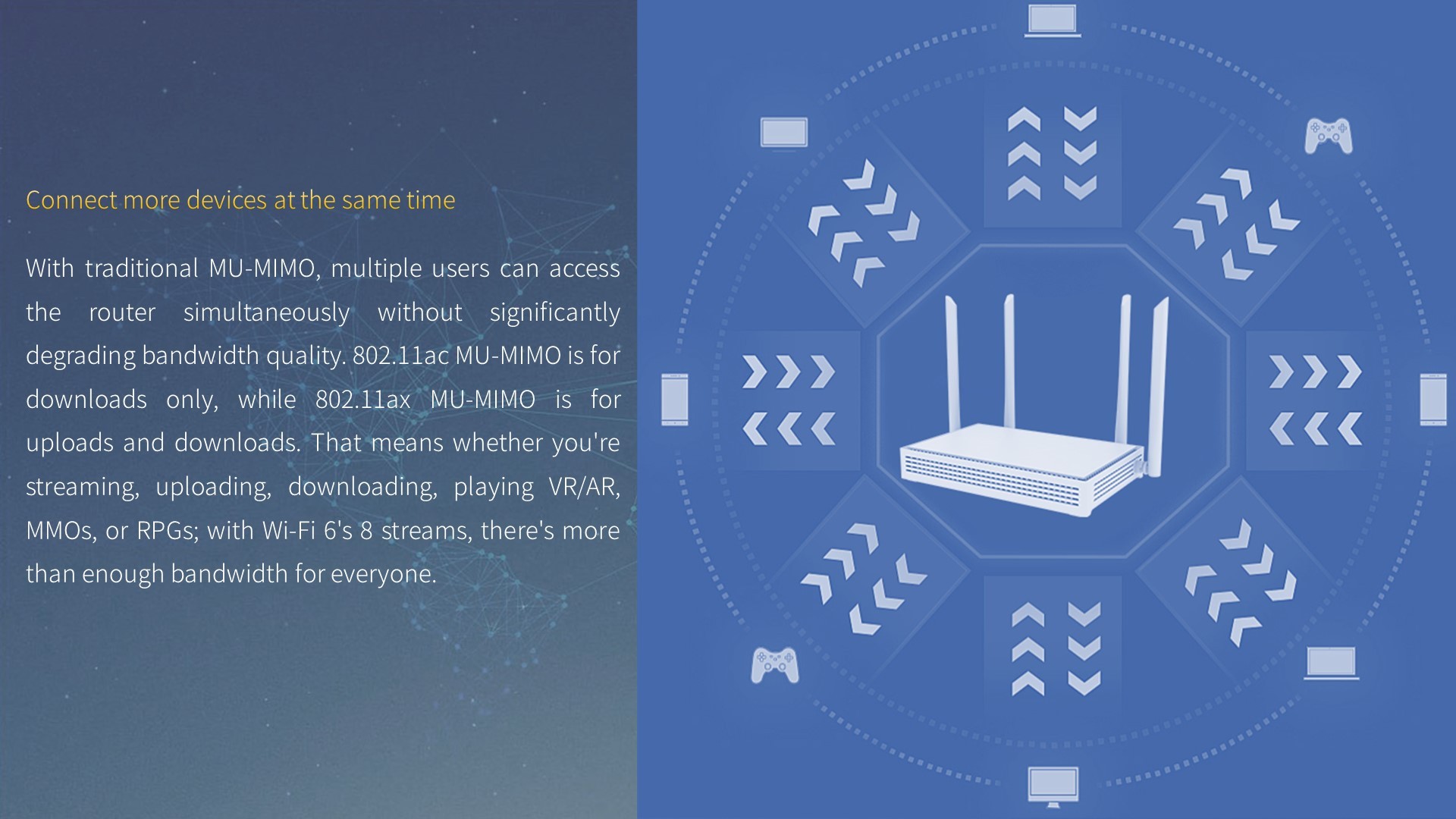

Basic skillsSSID Broadcast: Enable/Disable; Multiple Input Multiple Output
Wireless network securityWPA-PSK、WPA2-PSK、WPA/WPA2-PSK；   WPA3-SAE/WPA2-PSK ；Wireless Security: Enable/Disable；   WPS(WIFI Protected Settings) Fast Encryption
Other
TemperatureOperating temperature：0 ℃ ～45 ℃ ；Storage temperature：-40   ℃ ～70 ℃ 。
HumidityWorking humidity：10% ~ 90% RH no condensation；Storage humidity：5% ~ 90%RH No condensation.
CertificateCCC、SRRC、CE
Package ContentsWireless Router*1; Power Adapter*1; Installation Guide*1; Ethernet Cable*1
