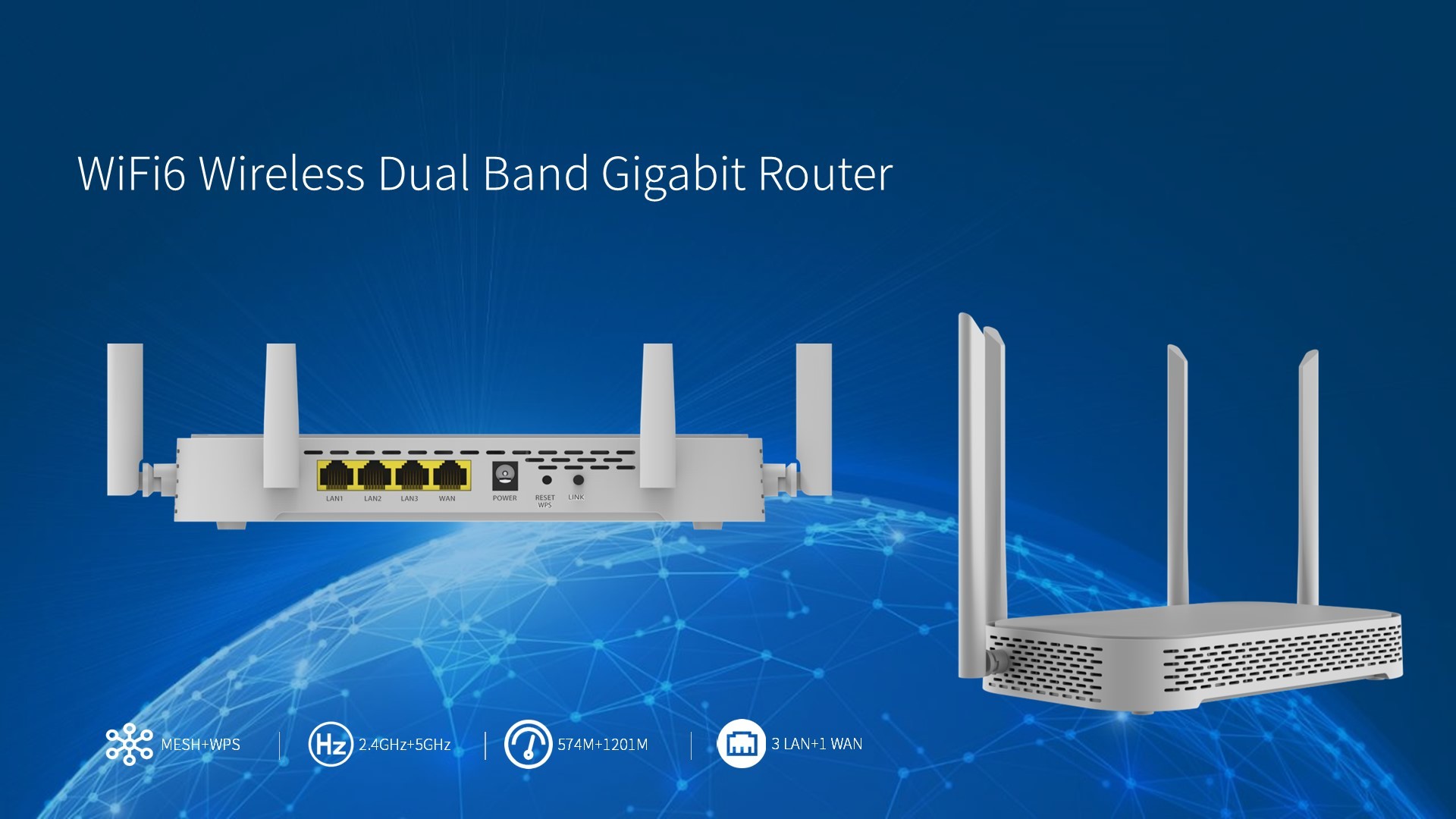

● Adopt MT7621A+MT7905DAN+MT7975DN solution

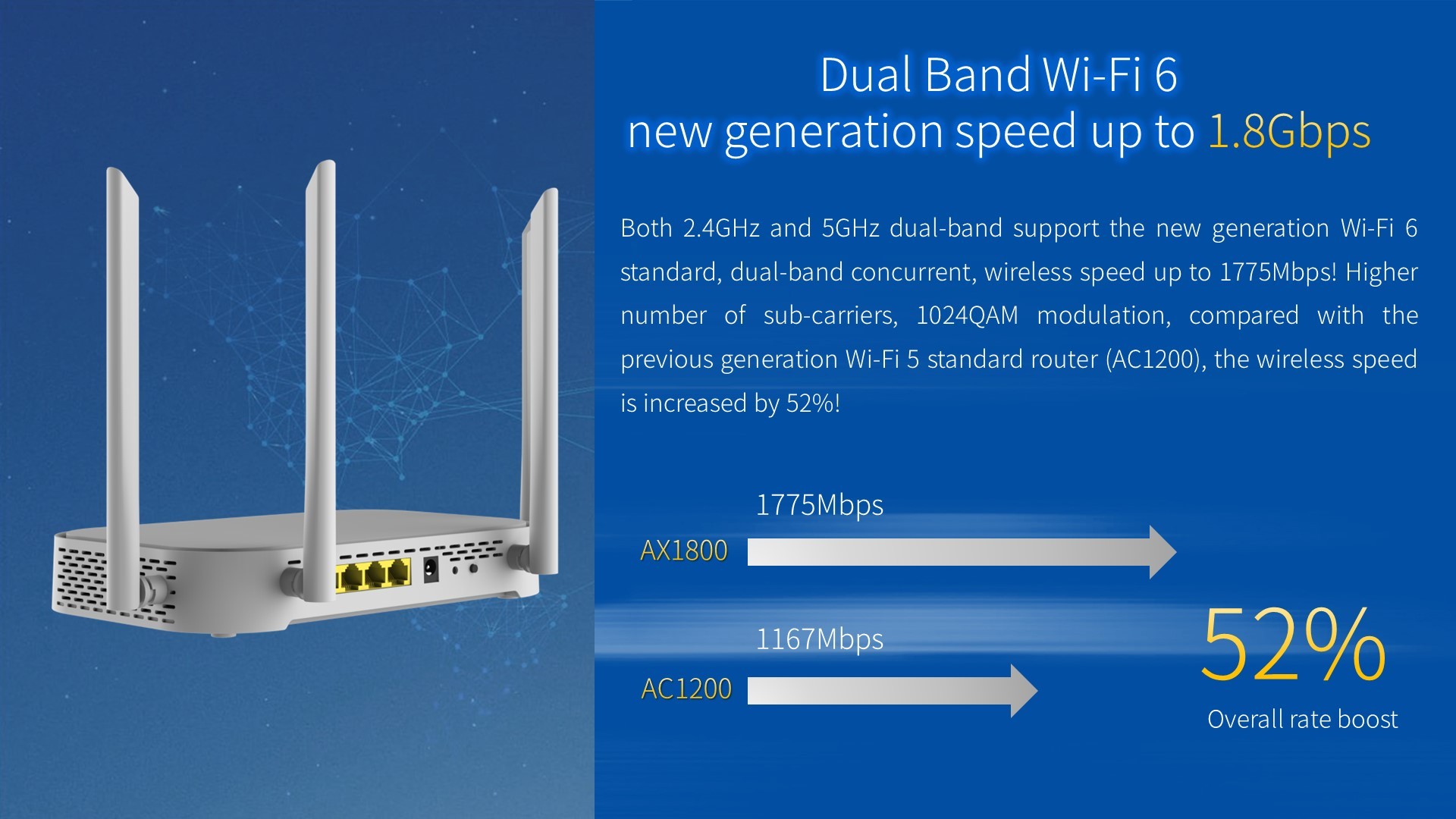

● 2.4G, 5G dual-band dual-band support WIFI6, backward compatible with WIFI5 and WIFI4

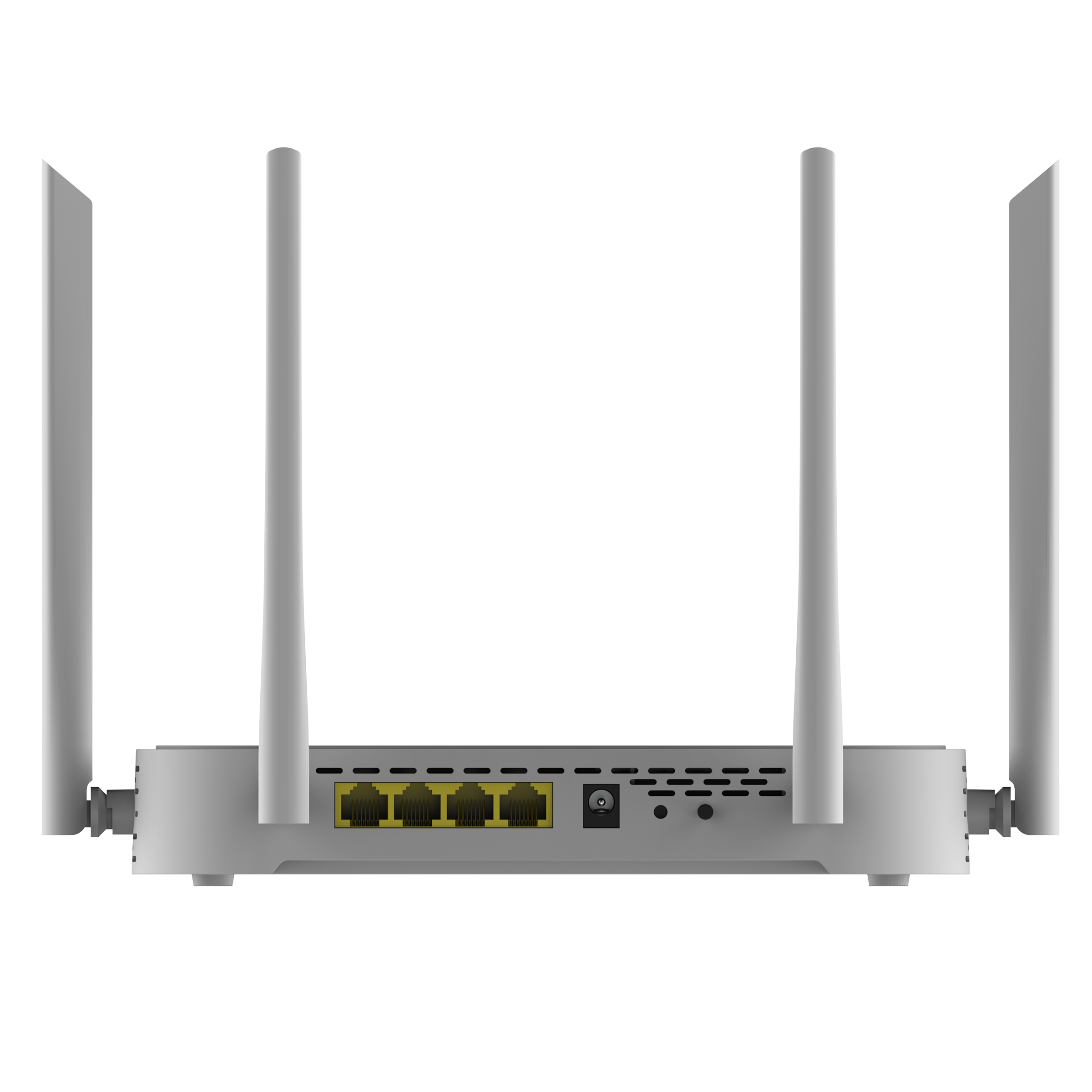

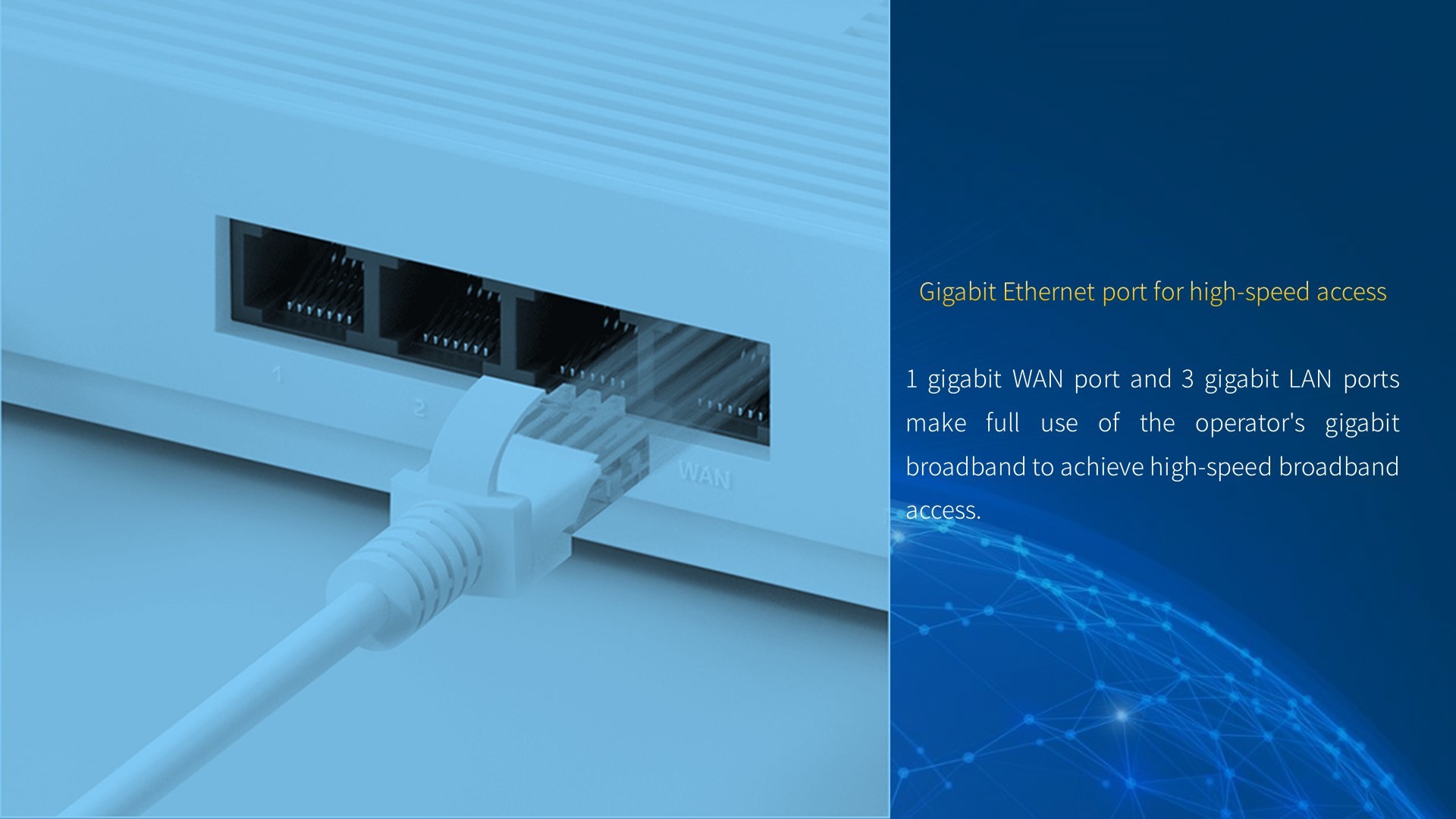

● 1*100/1000Mbps WAN port, 3*100/1000Mbps LAN port;
● Adopt 12V/1A power adapter
● Support one-key reset, WPS one-key connection to WIFI networking
● 256MB memory + 128MB Flash large storage design
| Hardware Description | ||
|---|---|---|
| Dimensions | 215mm（L）x 138mm（W）x 34mm（H） | |
| Network side interface | WAN:1*GE LAN:3*GE WLAN:2.4G/5G | |
| User side interface | Ethernet interface | 1~4GE |
| WLAN interface | 2.4GHz 802.11ax（2X2）+ 5GHz 802.11ax（2X2） | |
| Hardware Metrics | CPU | MT7621A：MIPS1004Kc（880MHz，Durl Core） |
| FLASH capacity | NAND FLASH 128MB | |
| RAM capacity | DDR3 256MB | |
| 2.4G/5G WIFI | MT7905DAN+MT7975DN | |
| Maximum power consumption | 10W | |
| Recommendations | l The product should be kept away from objects that affect the wireless signal transmission of the antenna, such as metal objects, mirrors and other highly reflective objects;l Products should be kept away from interference sources (wireless routers, microwave ovens, wireless phones, Bluetooth products, and data centers that generate a lot of high-frequency noise);l The product should be installed on the same floor of the use area as much as possible, and try to avoid using it on other floors;l Do not stack items on the product and minimize obstructions between the product and the receiving productl When the product is placed flat, the position should not be too high, the recommended height is between 1.2m and 1.5m;l The product should be placed as flat as possible in the middle of the use area, and try to avoid placing it in the corner of the use area. | |
| 11ax WLAN throughput requirements | ||
| Frequency band（Hz） | Bandwidth setting（Hz） | The throughput requirement is not less than（Mbps） |
| 2.4G（2X2） | 20 | 140 |
| 40 | 280 | |
| 5G（2X2） | 20 | 140 |
| 40 | 280 | |
| 80 | 560 | |
| 160 | 950 | |
| Switches and Keys | switch | none |
| button | RESET/WPS multiplexing button: short press for 2 seconds to start WPS, long press for more than 8 seconds to restore factory settingsLink button: Press and hold for more than 5 seconds for the mesh to take effect. | |
| LED lights | quantity | 1 green light, 1 red light |
| Status indication | Steady red light: normal power-on and no internet connectionBlinking red light: And-Link networking is in progressSteady green light: Internet connected, no data transferBlinking green light: Internet connected and data transfer available | |
| Power Adapter | 12V/1A | |
| Environmental requirements | temperature℃ | -5~40 |
| Relative humidity | 10~95 | |
| Atmospheric pressure（KPa） | 89~106 | |
| Certification | 3C certification and SRRC certification | |
| Reliability | The MTBF (mean time between failures) should be at least 30,000 hours, and there should be no business interruption or performance degradation during long-term operation. | |
| Protection ability | The device power supply has the protection capability of 4KV (differential mode and common mode); the Ethernet interface has the protection capability of 1.5KV (common mode). | |
| Software function | ||
| Base | -Quick Settings -Wireless Settings -And-Link Settings -Parental Controls -Guest Network -Smart QoS | |
| Network | -Internet settings -LAN settings -DNS -IPTV -IPv6 | |
| Wireless | -Wireless Settings -Guest Network -Access Control -WPS -Advanced Settings | |
| Settings management | - Routing table - Routing settings - IP/MAC binding | |
| Security Settings | -IP/Port Filtering -MAC Filtering -URL Filtering | |
| NAT forwarding | -Port forwarding -DMZ settings -VPN penetration | |
| Serve | -Remote management -UPnP -Scheduled reboot | |
| Tool | -Change Password -Time Setting -System Configuration -Firmware Local Upgrade -Ping Diagnosis -Route Tracing -System Log | |

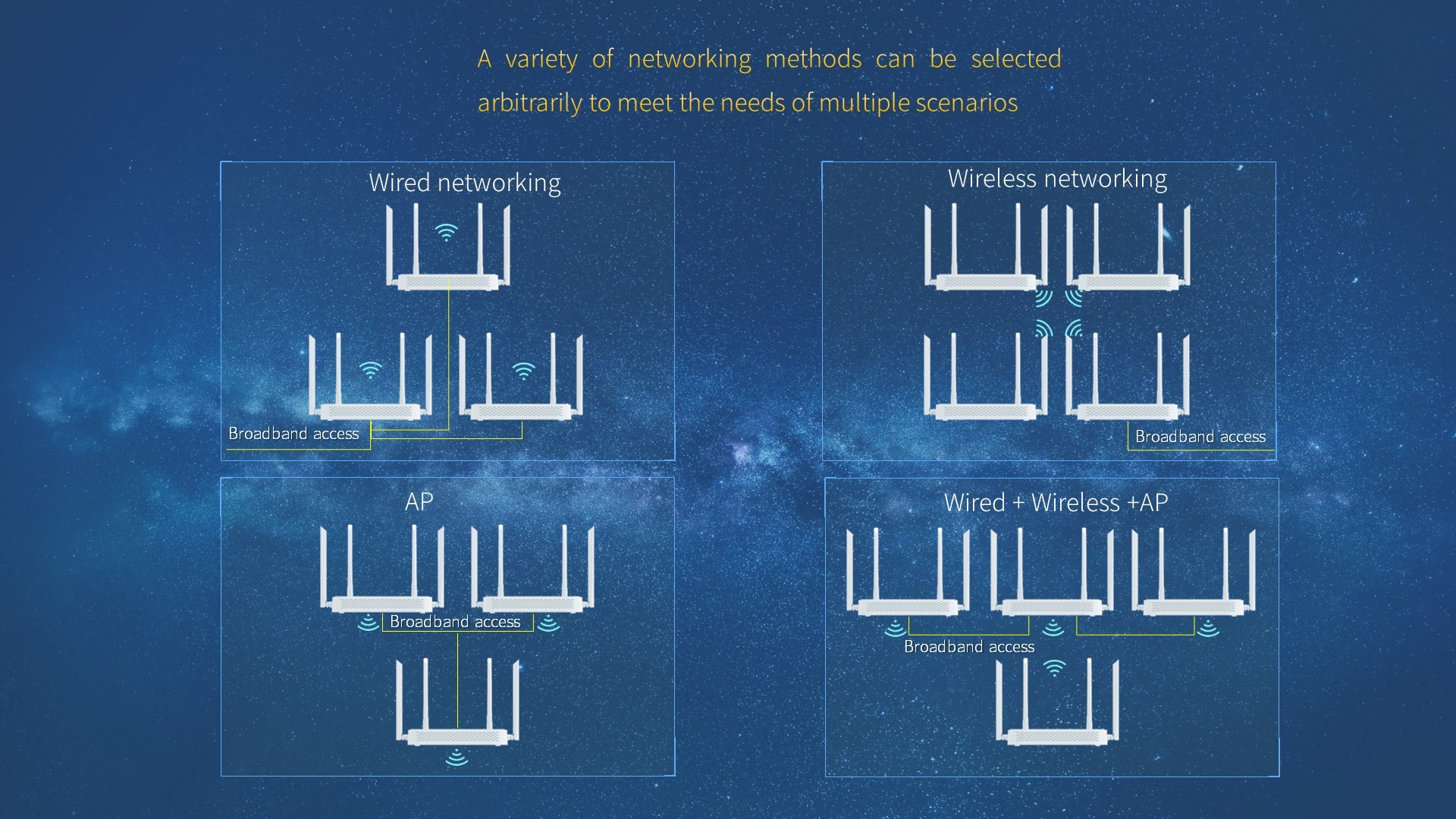

| Operating mode | - Gateway mode - Bridge mode - Relay mode | |
| Other functions | -LED lights show on and off | |
