Processor model compatible with 2.4G: RTL8197FH
5.8G chip: RTL8812FH
Network port chip: RTL8367S
Frequency band: 2.4G/5.8G
| Type | Part | Describe | Applicable | Remark | |
|---|---|---|---|---|---|
| hardware | PCBA components | The processor model is compatible with 2.4G | RTL8197FH | yes | |
| 5.8G chip | RTL8812FH | yes | |||
| Ethernet port chip | RTL8367S | yes | |||
| frequency band | 2.4G/5.8G | yes | |||
| Protocol standard | IEEE 802.11a/an/ac,IEEE 802.11n,IEEE 802.11g,IEEE 802.11b. | yes | |||
| FLASH | SPI NOR FLASH 16M | yes | |||
| Antenna | 2 2.4G WiFi antennas 2 5.8G antennas | yes | 4 built-in antennas | ||
| rate | 802.11N | ANT SISO 2X2 :300M | yes | ||
| 802.11AC | ANT SISO 2X2 :866M | yes | |||

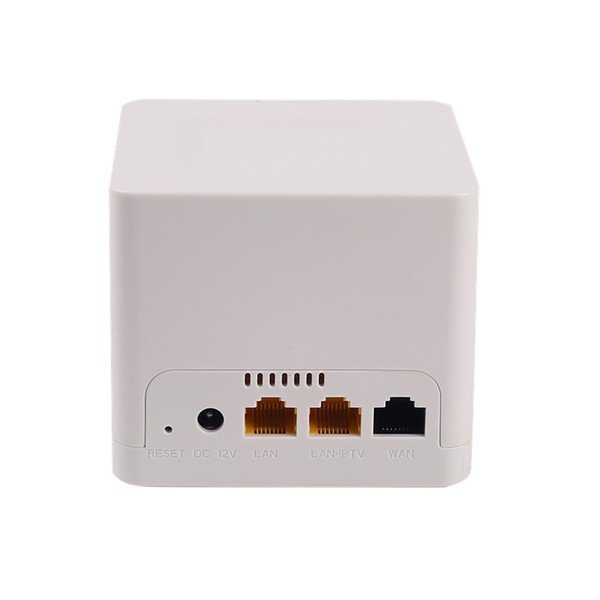

| I/O interface | WAN port | 10M/100M/1000M | yes | 1 | |
| LAN port | 10M/100M/1000M | yes | 2 | ||
| Power outlet | DC2.0 | yes | 1 | ||
| LED | System with WPS bi-color lights | yes | 1 | ||
| Reset button | Press and hold for 6 seconds to restore factory settings | yes | 1 | ||
| WPS and MESH buttons | A WPS and MESH share a key, short press 2S to start WPS, long press 6S to start MESH function | yes | 1 | ||
Power supply specifications | DC power supply | 12V 1A adapter | yes | 1 | |
| Typical power capacity | less than 10W | yes | |||
Product shell | Surface shell | hard plastic | yes | White | |
| bottom case | hard plastic | yes | White | ||
| Thermal testing and electronic installation testing required for the design | cooling grid | yes | |||
| applicability | temperature humidity | Operating temperature | 0℃～+45℃ | yes | |
| storage temperature | -40℃～+85℃ | yes | |||
| humidity | 5%-95% | yes | |||
| ESD | Contact discharge ±4K, air ±8K | yes | |||
| Finished product | Package | New Definition Design | According to customized needs | yes | |

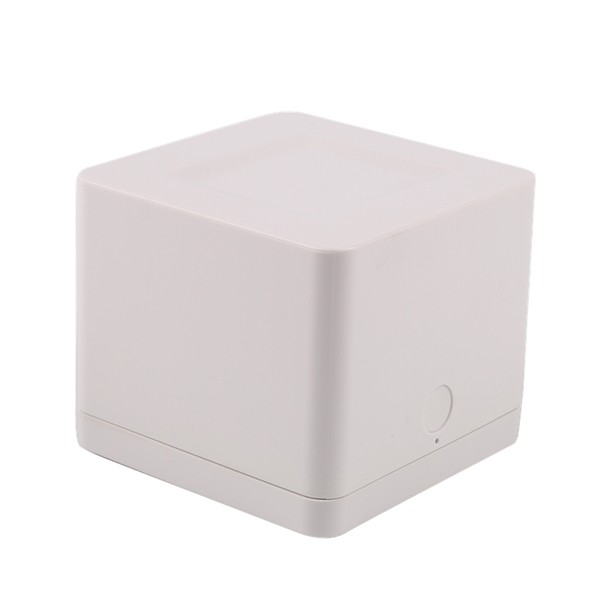

Machine Specifications | Dimensions (length, width, height) | L90mm W90mm H70mm | yes | ||
| product weight | According to actual evaluation | yes | |||
| Maximum gross weight (including accessories, retail packaging) | According to actual evaluation | yes | |||
| Accessories | Statement | folding book | yes | 1 | |
| adapter | 12V1A | yes | 1 | ||
| cable | 60CM crystal head at both ends (on behalf of the set) | yes | 1 | ||
| Software | Routing function | network management | support | yes | |
| VPN | support | yes | |||
| WPS | support | yes | |||
| firewall | support | yes | |||
| WPS function | 1，Press the MESH button on the panel for 2S to turn on the WPS function, and the green light keeps flashing every 0.5S.2，Turn on the phone and click the WPS button to automatically search for connection.3，When the phone is connected to WIFI, the green light is always on;4，When the connection fails and the green light enters a slow flashing state, please repeat the above 1~2 operations; | yes | |||
| MESH function | 1 long press the WPS button for 6S to open the MESH function.2. It flashes quickly when the MESH function is activated, and the blue light flashes every 0.5 seconds;3. After the MESH pairing is successful, the blue light is always on;4. When the connection fails and the blue light enters a slow flashing state, please repeat the above 1~2 operations; 5. The product can cascade up to 8 sub-relays. | yes | |||
| Certification | test | National standard certification | 3C certification, CE certification. | yes | |
| Network access certification | Mobile terminal network access license | yes |
