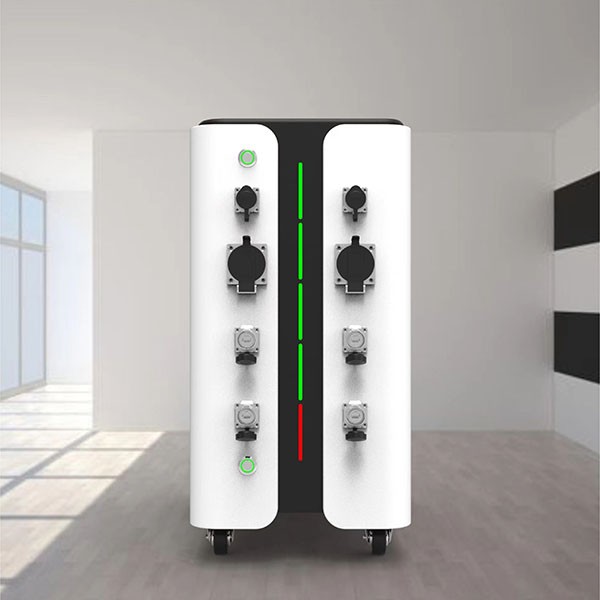

● 5KW pure sine wave output.
● The capacity is 5KWh. 10KWh is for optional.
● LFP battery cell, cycle life is over 6000 times, working life is over 15 years.

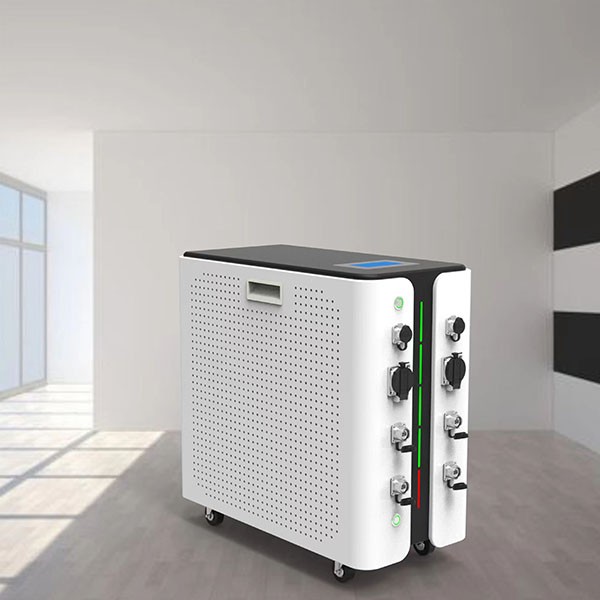

● Built-in wheels, easy to move.
● Attractive ID design.
| Item No. | KLF-H5K-A |
|---|---|
| Inverter Main Parameter | |
| Rated Output Power | 5000W |
| Max Charge Power | 1958W/34A@57.6V &110-220Vac/50Hz |
| PV input（DC） | |
| Rated DC Voltage | 60-150Vdc |
| Max DC Voltage | <150Vdc |
| Start-up Voltage | 3V over the voltage of the battery pack |
| MPPT Input Voltage Range | 60-150Vdc |
| MPPT tracker quantity | 1 |
| Max Input Current | 40A |
| Off-grid Output（AC） | |
| Rated Output Voltage | 220Vac/110Vac |
| Output Voltage range | ±3%rms |
| Max Output Power | 7500W @ 20S |
| Max Transfer Efficiency（DC/AC） | >90% |
| Off-grid switching time | <4mS(AC到DC)/<8mS(DC到AC) |
| AC Input | |
| Auto Start-up Voltage | 220Vac/110Vac |
| Accetable Voltage Range | 185-255Vac±4% / 90-130Vac±4% |
| Max Input Current | 42A/85A |
| Battery Pack Output（AC） | |
| Rated Output Voltage | DC42-60V |
| Transfer Efficiency（DC to AC） | >90% |
| Battery Spec. | |
| Battery Type | LFP |
| Rated Voltage | 51.2Vdc |
| Battery Capcity（Ah) | 100Ah |
| Storage Power (Wh) | 5120Wh |
| Charge Voltage（FC） | 57.6Vdc |
| Discharge Cut-off Voltage（FD） | 42Vdc |
| Protection | BMS, circuit breake, inverter |
| Internal Resistance（AC） | <25mΩ |
| Cycle Life | 6000 cycles |
| Warantee time | 3 years |
| Battery pack quantity | 1pc |
| Other Parameter | |
| Product Size(L*W*H) | 626*303.4*665.5mm |
| Product Weight | 62KG |
| Installation Method | Floor-mounted |
| Operating temperature/ Humidity range | -10～+45℃ / 5-95% |
| Communication | RS232/RS485/CAN |
| IP level | IP20 |
