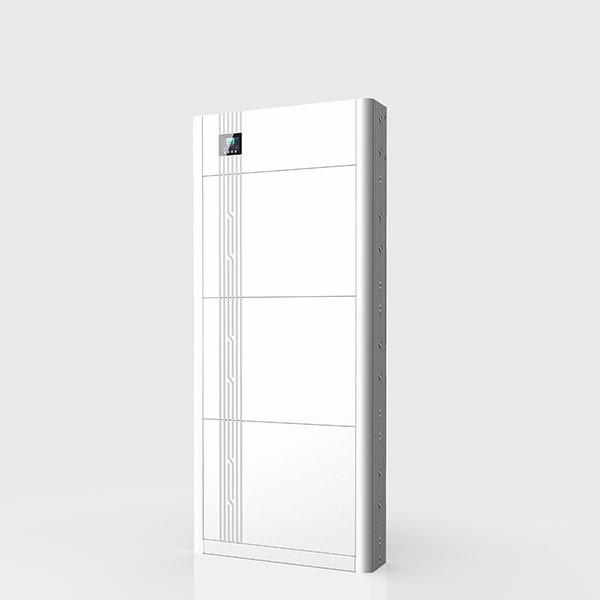

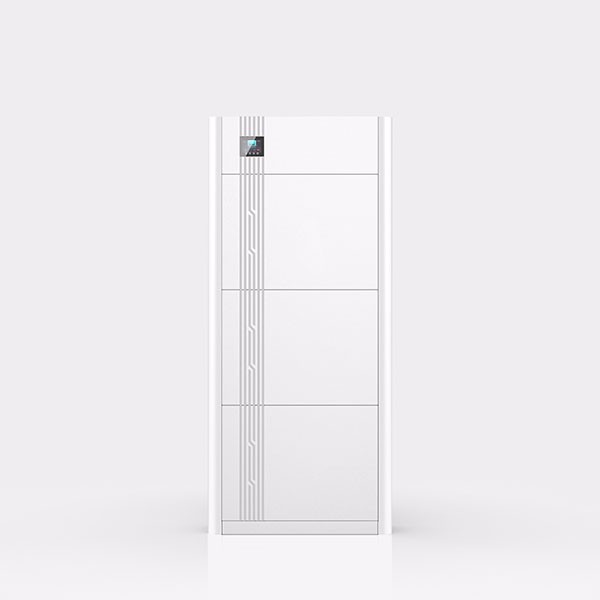

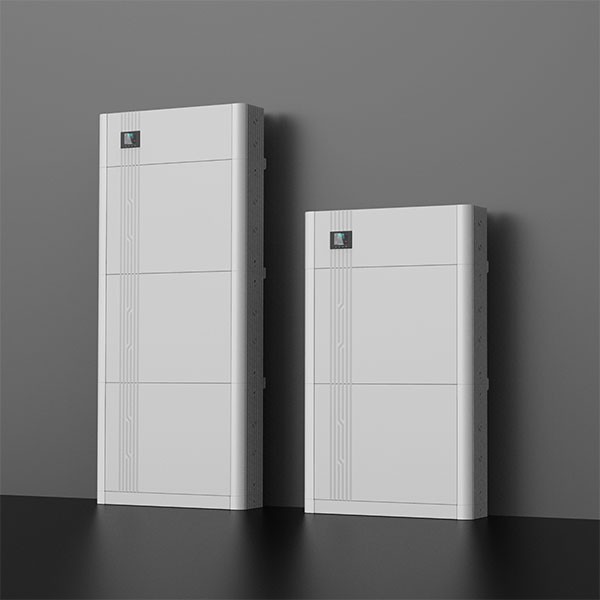

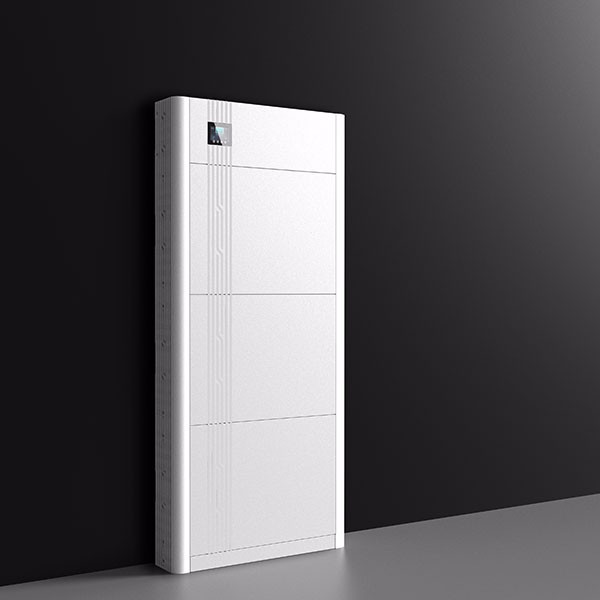

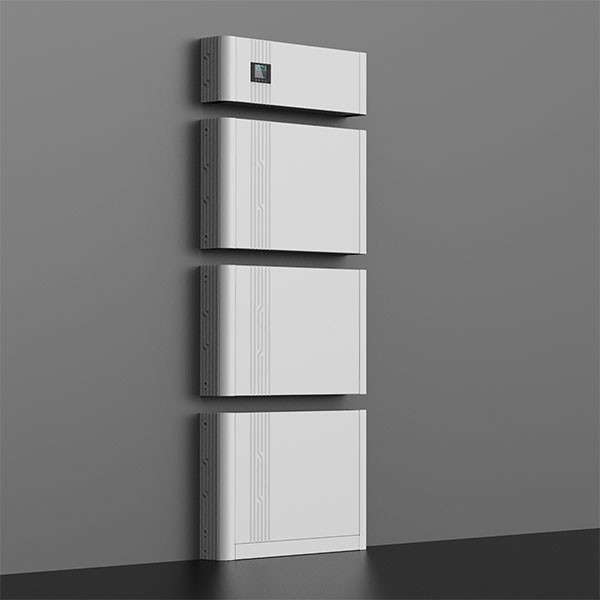

● Smart stack-style installation.
● One single battery module is 5120Wh. 2~6 packs (10KWh ~30KWh) for your optional.
● 6000 cycles, life time can be over 15 years.
● Matched inverter: Guruwat, GOODWE, SOFAR, DeYe, Voltronic Power, EAST, SMA
● Adorable ID design.
● Max support 16 modules in parallel, within 10 modules in parallel is recommend.
● A combiner box is required when the discharge current exceeds 100A.
| Item No. | KLF-B5K-A2 | KLF-B5K-A3 | KLF-B5K-A4 | KLF-B5K-A5 | KLF-B5K-A6 |
|---|---|---|---|---|---|
| Battery Module No. | KLF-B5K-A | ||||
| Module Qty | 2 | 3 | 4 | 5 | 6 |
| Rated Voltage(V) | 51.2V | ||||
| Votage Range (V) | 44.8V ~56V | ||||
| Rated Energy(Wh) | 10240Wh | 15360Wh | 20240Wh | 25600Wh | 30720Wh |
| Max. Discharge Current(A) | 200A | ||||
| Dimensin: W*H*D (mm) | 674*170*1100 | 674*170*1520 | 1348*1170*1310 | 1348*170*1520 | 1348*170*1520 |
| Weight (kg) | 124kgs | 176kgs | 228kgs | 280kgs | 332kgs |
| Environment Parameter | |||||
| IP | IP55 | ||||
| Charge Temperature Range(℃） | 0-45 (℃） | ||||
| Discharge Temperature Range(℃） | -20~60 (℃） | ||||
| Installation Method | Floor-mounted | ||||
| Service Life | |||||
| Cycle Life (times) | >6000 (0.5C @ 25℃, 80% DOD） | ||||
| Design Life (Year) | 15 years | ||||
| Certification | |||||
| Safety & Certification | CE, EMC, TUV(IEC62619), UL1973) | ||||
| Transportation | UN38.3 | ||||
